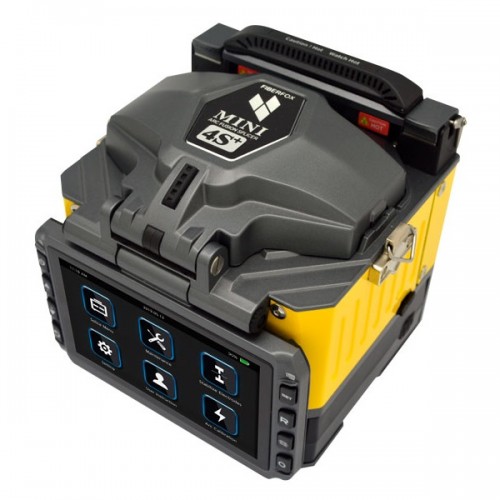

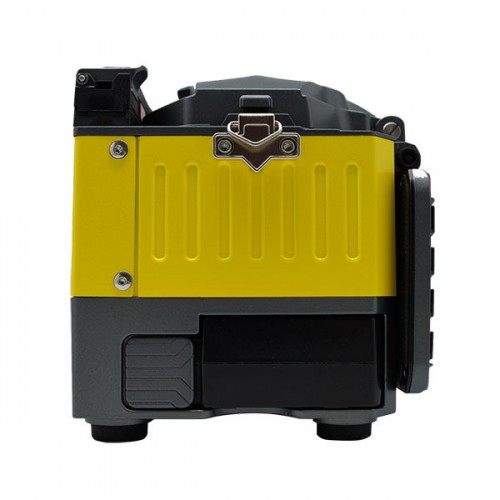

FiberFox Mini 4S+ Active V-Groov Clade Splicer Machine

Fiber optic splicer machines are used in the telecommunications and data networking industry to join or splice together optical fibers with precision. This process ensures low-loss connections and helps maintain the integrity of the optical signal as it travels through the fiber network.

Here are some typical features you might find in a fiber optic splicer machine:

1. Active V-Groove Alignment: Active alignment splicers use imaging technology to align the fibers accurately before fusing them together. V-groove alignment refers to the method of aligning fibers using V-shaped grooves that hold the fibers in place during the splicing process.

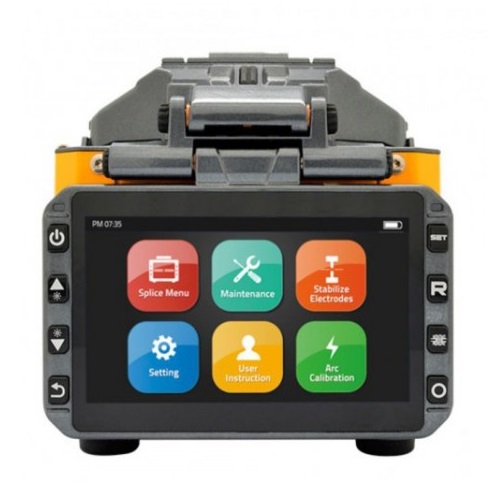

2. High-resolution Display: A splicer machine usually comes with a high-resolution display that allows the operator to monitor the splicing process, inspect the fibers, and make necessary adjustments.
3. Fusion Splicing: These machines utilize a technique called fusion splicing, where the ends of the two fibers are fused together using an electric arc or laser, creating a seamless connection.
4. Splicing Programs: Splicer machines often have pre-programmed splicing modes for different fiber types and applications, ensuring the appropriate settings are used for each splice.
5. Splice Loss Estimation: The machine may provide an estimation of the splice loss, which is the amount of light signal loss at the splice point. Lower splice loss indicates higher splicing quality.
6. Battery and Portability: Some splicer models are designed to be portable with built-in batteries, making them suitable for field use or situations where AC power may not be readily available.
7. Sleeve Heating: After the splicing process, a protective sleeve is often used to cover the splice joint. Some splicers have built-in heaters to shrink and secure these sleeves around the splice.
